Manual Operated Valves

What Are Manual Operated Valves?

Manual Operated Valves are the foundational components of any fluid piping system, requiring physical intervention—such as turning a lever, handwheel, or gear—to control the flow of media. Unlike automated valves, they operate independently of power sources like electricity or compressed air, making them exceptionally reliable for isolation, maintenance, and emergency shutdown (ESD) applications.

DELCO manual valves are engineered for ergonomic operation and long-term durability. They provide the operator with direct, tactile feedback and a visible indication of the valve’s position, ensuring maximum safety and simplified control in even the most rugged industrial environments.

How Do They Work?

The operation of a DELCO manual valve relies on mechanical advantage to move the internal closure element:

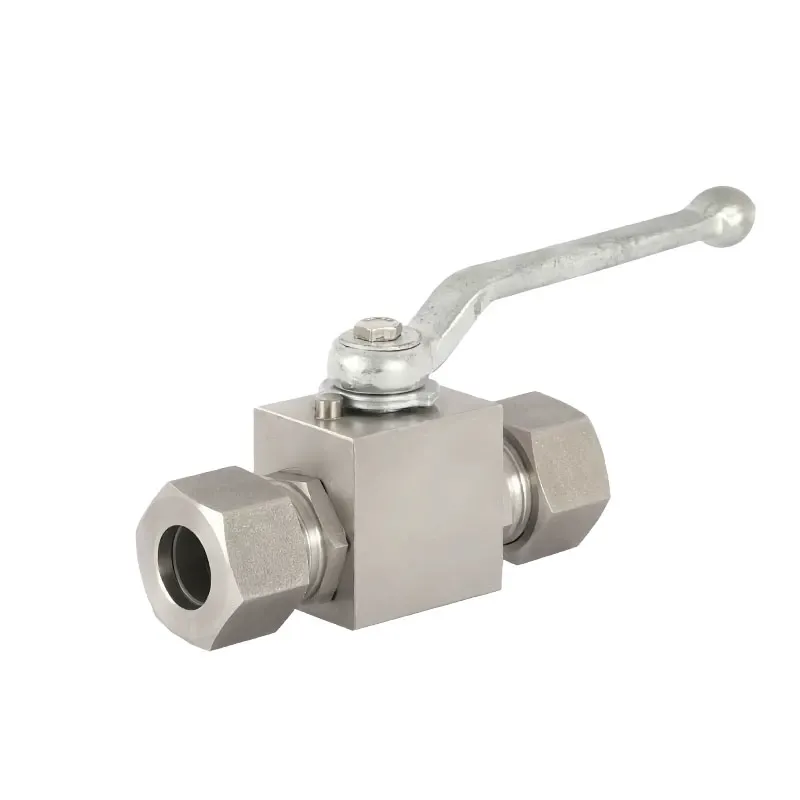

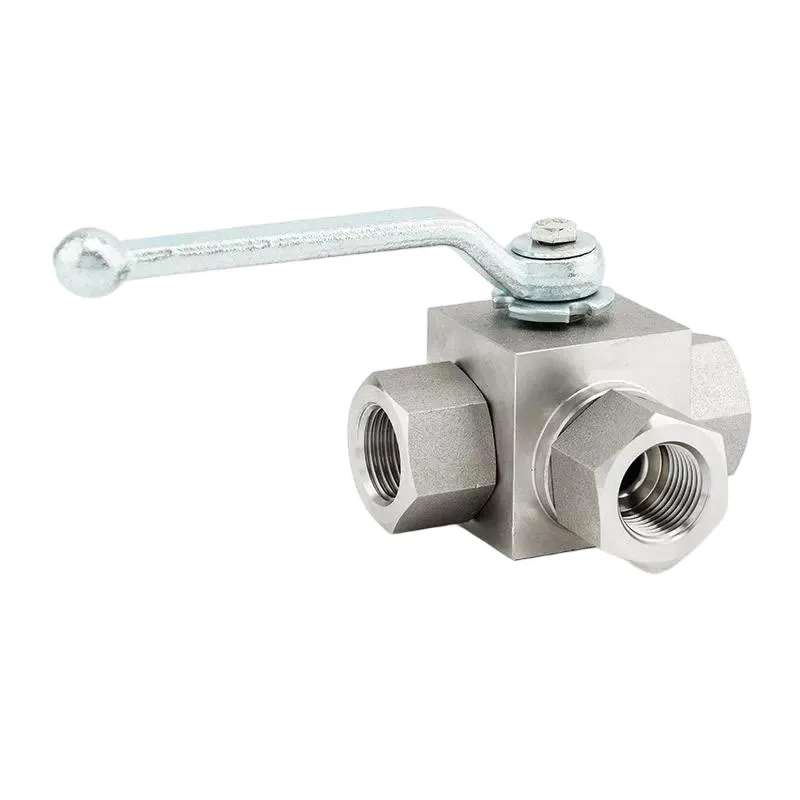

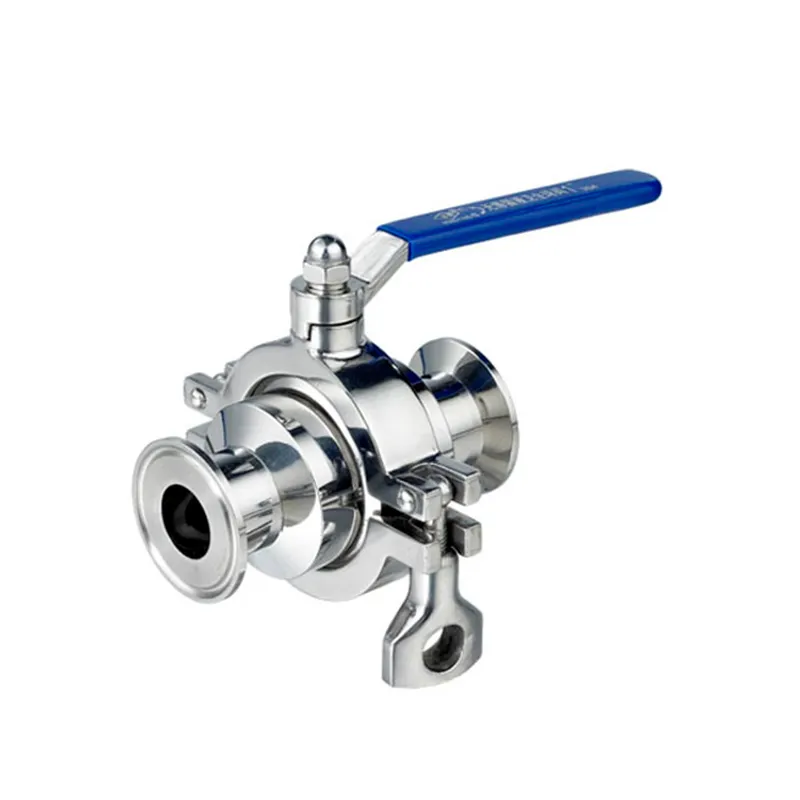

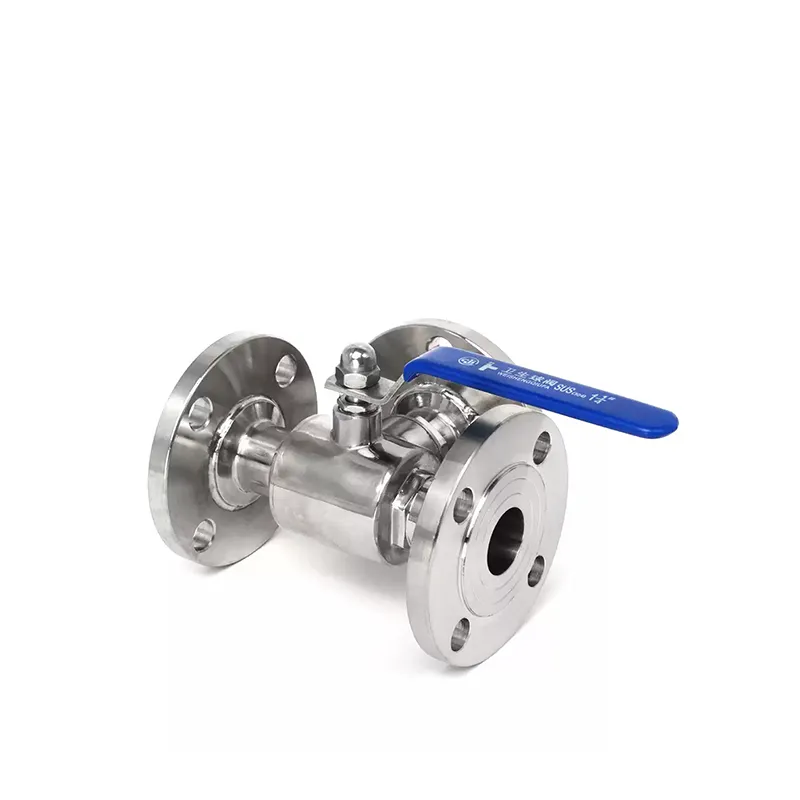

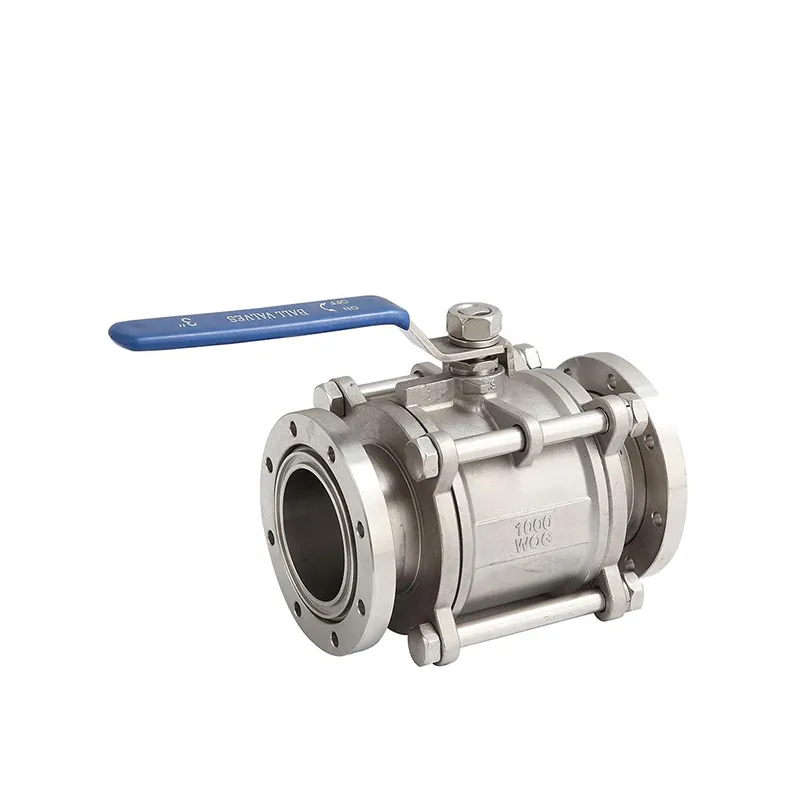

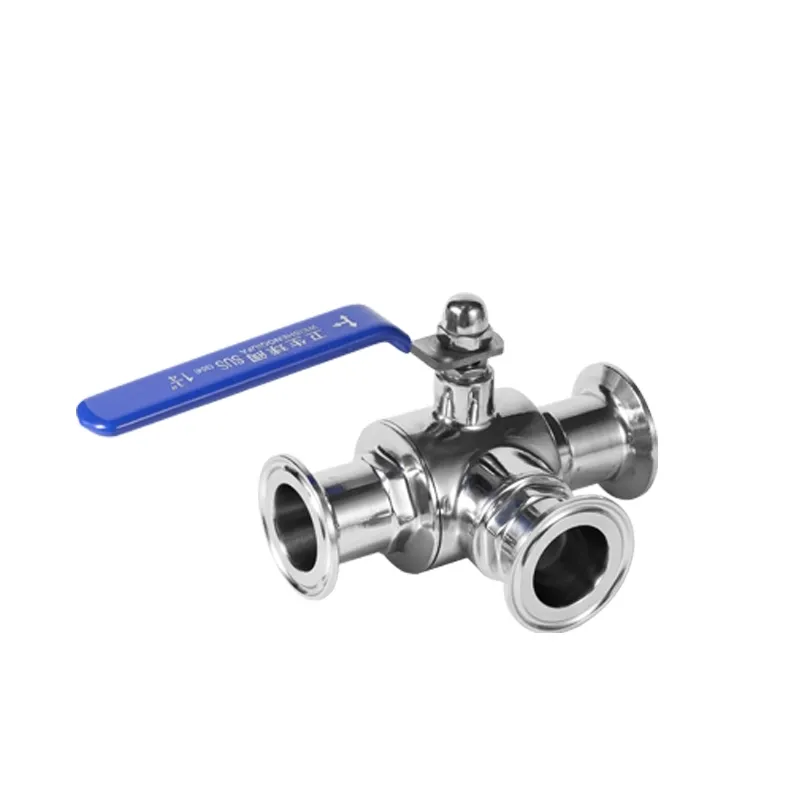

• Quarter-Turn Operation: In Ball and Butterfly valves, a 90-degree turn of a lever or gear handle rotates the internal disc or ball to fully open or close the flow path. This is ideal for rapid isolation.

• Multi-Turn Operation: In Gate, Globe, and Knife Gate valves, a handwheel is turned multiple times to move the stem linearly (up or down). This design allows for higher torque and, in the case of globe valves, more gradual control over the flow.

• Mechanical Force: The operator's force is transmitted through the stem to the sealing surface, ensuring a tight, leak-proof shut-off against the system pressure.

Key Components of a Manual Valve:

• The Body: The primary pressure-retaining structure, manufactured by DELCO in materials ranging from Carbon Steel to Stainless Steel and specialized alloys.

• The Operator (Lever/Handwheel/Gear): The interface for the user. We offer ergonomic handwheels and high-torque gear operators for larger valve sizes.

• The Stem: The heavy-duty link that connects the handle to the internal disc or ball, designed to resist torque and corrosion.

• The Packing & Seals: High-quality elastomers or graphite seals that prevent leakage along the stem and ensure bubble-tight closure.

Why Use DELCO Manual Valves?

• Ultimate Reliability: They function perfectly during power outages or air supply failures, acting as a critical fail-safe for your facility.

• Cost-Effective Efficiency: Without the need for expensive actuators or control systems, they offer a lower initial investment and zero energy consumption.

• Ease of Maintenance: Simple mechanical designs mean fewer points of failure and easier field servicing.

• Clear Visual Status: The position of the lever or the height of the rising stem provides an immediate visual confirmation of whether the valve is open or closed.

Frequently Asked Questions (FAQ)

Q1: When should I choose a Gear Operator over a standard Lever?

A: DELCO recommends gear operators for larger valve sizes (typically above 6 inches for butterfly valves or 3 inches for high-pressure ball valves) to reduce the physical effort required and to prevent "water hammer" caused by closing the valve too quickly.

Q2: Can DELCO manual valves be converted to automated valves later?

A: Yes. Many of our manual valves feature ISO 5211 mounting pads, allowing you to easily remove the handle and install a pneumatic or electric actuator in the future as your automation needs grow.

Q3: Are these valves suitable for high-temperature steam?

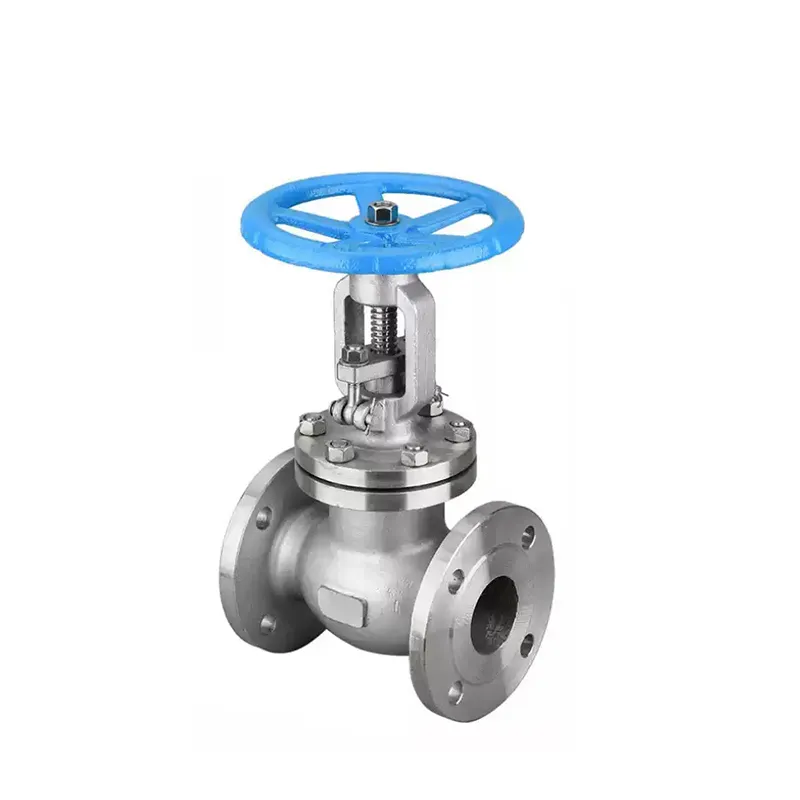

A: Absolutely. Our Manual Globe and Gate Valves are available with high-temperature graphite packing and metal-to-metal seats, specifically designed for steam and thermal oil applications.
